STL Files: Your Guide to 3D Printing Success

3D printing has revolutionized the way we create and manufacture objects, allowing for unprecedented levels of customization and innovation. At the heart of this technology lies the STL file format, which serves as the foundation for 3D printing. Understanding STL files is crucial for anyone looking to dive into the world of 3D printing, whether you're a hobbyist, an engineer, or an artist. This guide will walk you through everything you need to know about STL files, from their structure to how to create and optimize them for successful prints.

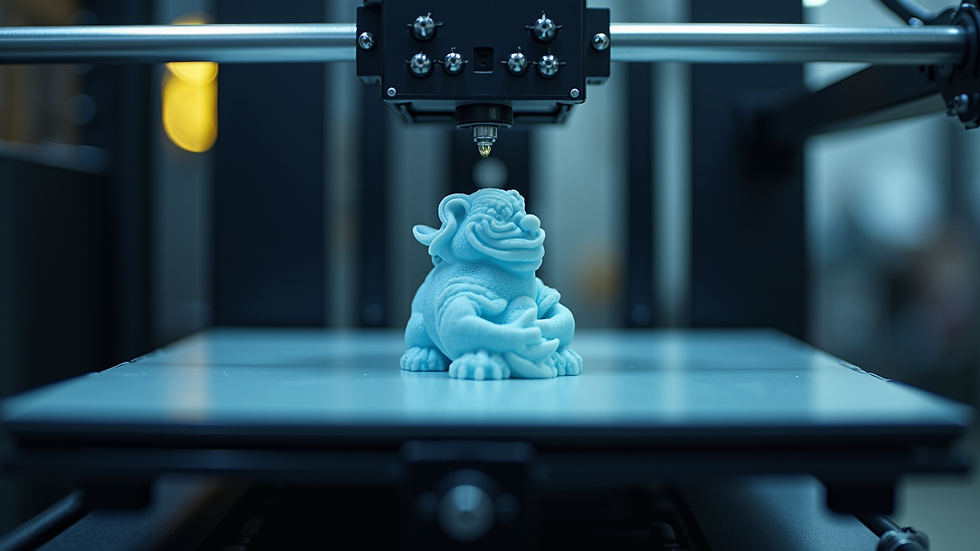

Eye-level view of a 3D printer in action

What is an STL File?

STL stands for "Stereolithography," a file format developed by 3D Systems in the 1980s. It is widely used for 3D modeling and printing because it describes the surface geometry of a 3D object without any color, texture, or other common CAD model attributes. An STL file contains a series of triangular facets that represent the outer shell of a 3D object.

Key Features of STL Files

• Triangular Facets: The primary structure of an STL file is made up of triangles. Each triangle is defined by its three vertices and a normal vector, which indicates the outward direction of the surface.

• No Color or Texture: STL files do not store information about color, texture, or other attributes. This simplicity makes them easy to process but limits their use in applications requiring detailed visual representation.

• ASCII and Binary Formats: STL files can be saved in two formats: ASCII (text-based) and binary (more compact). Binary files are generally smaller and faster to process, making them the preferred choice for most applications.




How to Create STL Files

Creating STL files can be done using various 3D modeling software. Here are some popular options:

1. Tinkercad

Tinkercad is a user-friendly, web-based application ideal for beginners. It allows users to create simple 3D models using basic shapes. Once your design is complete, you can export it as an STL file with just a few clicks.

2. Blender

Blender is a powerful open-source 3D modeling software that offers advanced features for creating complex models. To export your model as an STL file, simply select your object, go to the "File" menu, choose "Export," and select the STL format.

3. Fusion 360

Fusion 360 is a professional-grade CAD software that provides robust tools for engineering and product design. After creating your model, you can export it as an STL file by selecting the "3D Print" option from the "Make" menu.

Optimizing STL Files for 3D Printing

Creating an STL file is just the first step; optimizing it for 3D printing is essential for achieving the best results. Here are some tips to ensure your STL files are ready for printing:

1. Check for Errors

Before printing, it's crucial to check your STL file for errors. Common issues include non-manifold edges, holes, and inverted normals. Software like Meshmixer or Netfabb can help identify and repair these problems.

2. Scale Your Model

Ensure your model is scaled correctly for your 3D printer. Most modeling software allows you to set the dimensions of your object before exporting it as an STL file. Always double-check the scale to avoid printing issues.

3. Reduce Polygon Count

While STL files can handle complex geometries, a high polygon count can slow down the slicing process and lead to longer print times. Simplifying your model by reducing the number of polygons can improve performance without sacrificing quality.

4. Orient Your Model

The orientation of your model can significantly impact the print quality and strength. Consider how your model will be printed and adjust its orientation in your slicing software to minimize the need for supports and improve overall strength.

Slicing STL Files for 3D Printing

Once you have your optimized STL file, the next step is slicing it for your 3D printer. Slicing software converts your STL file into G-code, which is the language your printer understands. Here are some popular slicing software options:

1. Cura

Cura is a widely used, open-source slicing software that supports a variety of 3D printers. It offers a user-friendly interface and a range of customizable settings to optimize your print.

2. PrusaSlicer

PrusaSlicer is designed for Prusa 3D printers but can be used with other printers as well. It provides advanced features like variable layer height and support generation, making it a great choice for detailed prints.

3. Simplify3D

Simplify3D is a paid slicing software that offers extensive control over the slicing process. It provides advanced features like multi-part printing and customizable support structures, making it suitable for professional users.

Common Issues with STL Files and How to Fix Them

Even with careful preparation, issues can arise when working with STL files. Here are some common problems and their solutions:

1. Non-Manifold Edges

Non-manifold edges occur when a model has edges that do not belong to exactly two faces. This can lead to printing errors. Use software like Meshmixer to identify and fix non-manifold edges.

2. Holes in the Mesh

Holes in your mesh can cause gaps in your print. Ensure your model is watertight by checking for holes and repairing them in your modeling software before exporting to STL.

3. Inverted Normals

Inverted normals can lead to incorrect printing orientations. Use your modeling software to recalculate normals and ensure they are facing outward.

Conclusion

Understanding STL files is essential for anyone interested in 3D printing. By mastering the creation, optimization, and slicing of STL files, you can significantly improve your 3D printing success. Whether you're creating prototypes, artistic designs, or functional parts, a solid grasp of STL files will empower you to bring your ideas to life.

As you embark on your 3D printing journey, remember to experiment, learn from your mistakes, and continuously refine your skills. Happy printing!
